Specifications

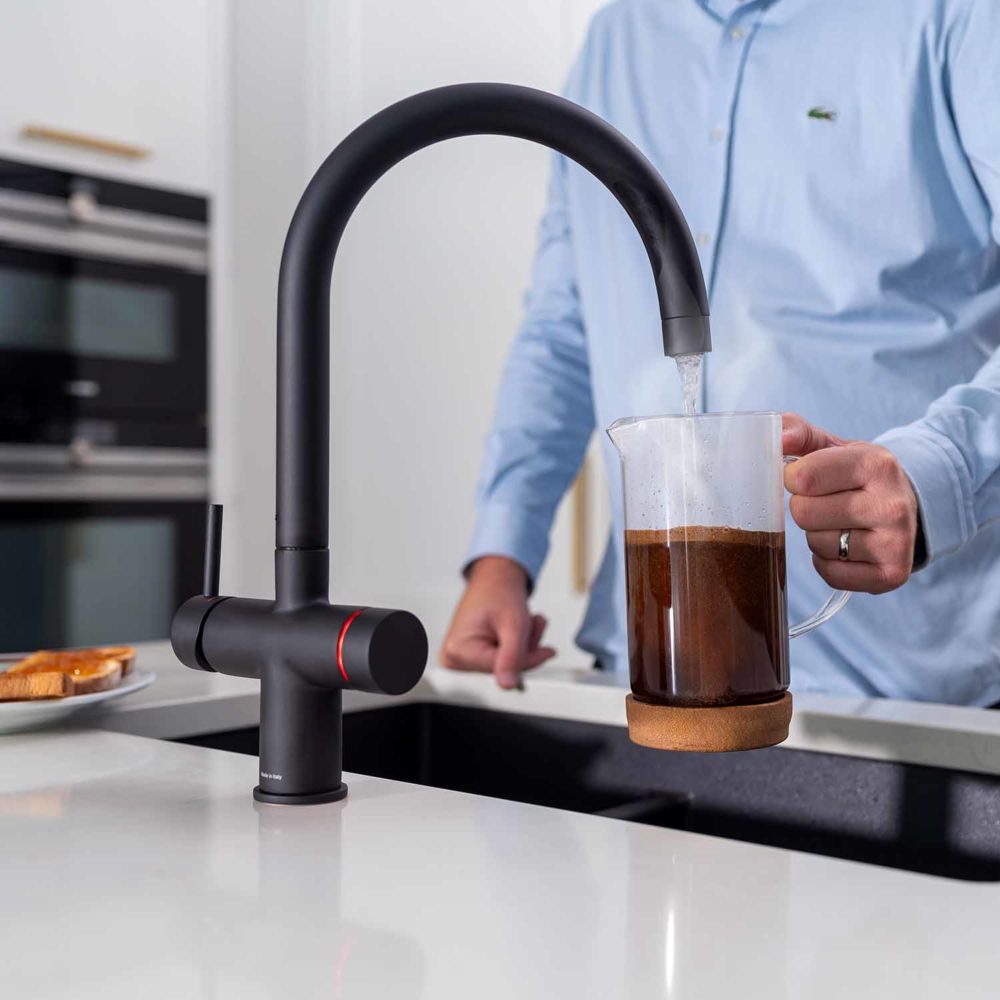

Aquatap Ultimo C Shape

Specification for Aquatap Ultimo Tap

Product Overview:
The Aquatap Ultimo Tap is a multifunctional electronic tap designed specifically for integration with the Aquatap Ultimo CWU (Conditioned Water Unit) system. It enables the dispensing of filtered, chilled, carbonated, and boiling water through a single, elegant interface.

Functionality:

Single-Lever Mixer Function: The tap features a classic single-lever mixer for standard hot and cold water.
Electronic Interface: Conditioned water (chilled, carbonated, boiling) is safely activated using an electronic interface, which can be operated via a push/turn knob or an electronic keypad, depending on the variant.
Touchless Operation: Optional touchless operation is available for enhanced hygiene and convenience.

Technical Specifications:

Material: High-quality stainless steel or chrome-plated brass, ensuring durability and resistance to corrosion.
Control Type: Electronic with a compatible software version, ensuring seamless integration with the Aquatap Ultimo system.
Water Dispensing:
- Filtered Chilled Water: Activated via the electronic interface.
  Filtered
- Carbonated Water: Dispensed at the touch of a button, with carbonation levels preset by the system.
- Filtered Boiling Water: Safely dispensed with a child-proof mechanism to prevent accidental activation.
Flow Rate:
- Standard Water: Approx. 2.0 litres/min at 3 bar pressure.
- Conditioned Water: Variable depending on the system configuration, typically 2.5 litres/min for chilled and carbonated water, and 2.7 litres/min for boiling water.
Compatibility: The tap is designed exclusively for use with the Aquatap Ultimo CWU system and requires a compatible software version for operation.

4 Litre Conditioned Water Unit Device (CWU)

Specification for CWU Device

Product Overview:
The CWU (Conditioned Water Unit) Aquatap Ultimo is a multifunctional device designed to filter, chill, carbonate, and boil tap water, providing various water options from a single faucet. This system is ideal for installation under a kitchen sink, offering high performance in both household and semi-public environments such as staff kitchens.

Functionality:

Filtered Chilled Water: Provides clean, chilled water, filtered to remove impurities.
Filtered Carbonated Water: Delivers sparkling water by carbonating filtered chilled water.
Filtered Boiling Water: Supplies instant boiling water, ideal for beverages and cooking.

Technical Specifications:

Dimensions:
- Height: 440 mm
- Width: 200 mm
- Depth: 495 mm (without connectors) / 525 mm (with connectors)
Weight:
- Empty: 20 kg
- Filled: 27 kg
Supply Voltage: 230 VAC / 50 Hz
Max Power Consumption: 1725 W (±10%)
Standby Power Consumption: 19 W (Cooling & Boiling on)
Holiday Mode Power Consumption: 8 W @ 20 °C ambient temperature
System Working Pressure (Water): 1-10 bar (3 bar pressure reducer at inlet point)
System Working Pressure (CO2): 5 bar (with pressure reducer at inlet point for the integrated CO2 cylinder)
Reservoir Volume:
- Chilled Water: 2.2 litres
- Carbonated Water: 0.6 litres
- Boiling Water: 4.0 litres
Cooling Refrigerant: R290 – 35 g
Cooling Time: 35 minutes for 1.7 litres of chilled water below 10 °C
Boiling Temperature Range: 60 to 98 °C
Sound Pressure Level: 37 ± 4 dB in operation mode
IP Rating: IPx1

CO2 Supply:

Integrated 425 g CO2 cylinder delivering approximately 60 litres of carbonated water.
Optionally connect an external CO2 cylinder with an adjusted pressure reducer (5 bar

Filter

Specification for Filter Used in CWU Device

Filter Overview:
The Aquatap Ultimo Filter is essential for the proper functioning of the Aquatap Ultimo system. It ensures high-quality water by removing impurities, heavy metals, and unwanted flavours while protecting the system from lime scale deposits.

Technical Specifications:

Filter Type: Flow-through process filter with integrated activated carbon.
Functionality:
- Reduces heavy metal ions such as lead, copper, and cadmium.
- Eliminates organic impurities, odours, and chlorine residues.
- Optional decalcification function depending on the local water hardness.
Capacity:
The filter is designed to handle approximately 6-12 months of use depending on the water hardness and usage patterns.
RFID Tag: The Aquatap Ultimo Filters are equipped with an RFID tag for automatic recognition by the Aquatap Ultimo system, ensuring optimal operation.
Replacement Cycle: The filter should be replaced every 6 to 12 months. Failure to replace the filter voids the warranty.
Compatibility: Specifically designed for use with Aquatap Ultimo CCU/CWU systems. Using non-Aquatap Ultimo filters will deactivate the warranty.

CO2 Supply

Integrated 425 g CO2 cylinder delivering approximately 60 litres of carbonated water.
Optionally connect an external CO2 cylinder with an adjusted pressure reducer (5 bar).

Installation & Maintenance Requirements

CWU Device

Installation Requirements:

Space Requirements:
- Cabinet Depth: Min. 550 mm
- Cabinet Width: Min. 200 mm
- Cabinet Height: Min. 440 mm
Ventilation: The kitchen cabinet must have sufficient ventilation, with an opening of approx. 20 × 40 cm (800 cm²) in the rear panel or similar openings in the base plate with at least 5 cm clearance to the floor.
Water Supply:
- Constant drinking water quality with a flow pressure between 1 and 10 bar.
- Water temperature must be between 5°C and 30°C.
Electrical Supply:
- Separate GFCI-protected power circuit with a minimum fuse of 10 A.
- Power cable delivered with the device must be used.
Filter Requirement:
- The device cannot be operated without a filter.
- In water supplies with a hardness below 7 °dGH / °KH, a freshwater filter (F-filter) should be used instead of a standard decalcification filter (C-Filter).

Filter Used in CWU Device

Installation & Maintenance:

Installation: The filter cartridge must be inserted and locked into the filter head. After storage at temperatures below 0° C, the cartridge must be brought to room temperature for at least 24 hours before use.
Replacement: Replace the filter cartridge by removing the old one and inserting a new cartridge. The system will automatically reset the filter counter when a new RFID-equipped filter is detected.

Guide & Diagrams

Aquatap Ultimo Installation Manual

Aquatap Ultimo Diagrams

Request Technical Support

Having trouble with your Aquataps system? We’re sorry to hear that! Don’t worry, though—it’s often easier to fix than you might think. Many issues can be quickly solved right at home. Let’s get your water flowing perfectly again!

Essential Guide

Description

Aquataps Ultimo – 6 in 1 Instant Boiling at 100°C, Chilled, Sparkling Filtered Water Tap | The Source of Life and Innovation

The Wonder of Time and Convenience.
Aquataps Ultimo is the All-in-One system designed to bring you the ultimate water experience, offering instant access to running water, boiling water at 100°C, and four types of filtered water: room temperature, chilled, ambient, and sparkling. This innovative 6-in-1 home water solution ensures that your water is pure, refreshing, and tailored to your preferences, making it key to a healthier everyday home lifestyle.

Your Kitchen’s Best Ally
Aquataps Ultimo acts as your personal sous chef, eliminating unnecessary waiting times and providing immediate access to chilled still or sparkling water, or boiling water ready for cooking. Whether you’re preparing a quick pasta dish, making a cup of herbal tea, or filling a hot water bottle, Aquataps Ultimo has you covered—all with a stylish and discreet design. The compact device is installed under the sink, keeping your kitchen tidy and clutter-free.

Reviews

There are no reviews yet.

Be the first to review “6 in 1 Instant Boiling, Chilled, Sparkling Filtered Water Tap | Aquatap Ultimo C Shape | Matt Black”

Product Enquiry

Aquataps Ultimo features electronic LED indicators on the tap for easy and intuitive operation

WHITE LED: STAND-BY

Indicates that the mixer is on and ready for your selection. After 5 seconds of inactivity, the mixer switches off completely.

BLUE LED: FILTERED AMBIENT & CHILLED WATER

Turn the knob and the colour changes to blue: the mixer is ready to dispense filtered water, at room temperature (press the knob once) or chilled (press twice), free of odours and undesired substances.

GREEN LED: FILTERED CHILLED SPARKLING WATER

The green light indicates that the mixer is ready to dispense filtered chilled sparkling water: the amount of carbon dioxide present in the water can be customised using the App.

RED LED: FILTERED BOILING 100°C WATER

The red light shows the mixer is in filtered boiling water mode. Dispensing starts while you press the knob and stops when released to prevent accidental contact with hot water. The mixer has a 'Pot Filler' function, activated by pressing the knob twice, allowing continuous hands-free boiling water for up to 60 seconds (approx. 2.2 litres), unless manually stopped.

Water options

100°C Filtered Boiling

Instant access to boiling water, perfect for making tea, coffee, or speeding up cooking processes.

Filtered Ambient

Enjoy clean, filtered cold water for drinking or cooking, directly from your tap.

Filtered Chilled

The Ice Bank chilling system ensures a constant chilled temperature below 10°C.

filtered chilled sparkling

Say goodbye to plastic bottles. Our chiller and filter system provides refreshing sparkling chilled water.

Unfiltered Hot and Cold

Regular hot and cold water for any kitchen need, ensuring complete tap functionality.

Key features and functionality

6-in-1 Functionality

The Aquatap Ultimo is a truly multifunctional device, providing six distinct water dispensing options from a single tap:

Filtered Water: Enjoy clean, crisp water that has been thoroughly filtered to remove impurities.
Filtered Chilled Water: Refresh yourself with cool, filtered water at the perfect temperature.
Filtered Carbonated Water: Savor sparkling water with optimal carbonation, freshly dispensed.
Filtered Boiling Water: Quickly access boiling water for tea, coffee, and cooking, with an adjustable temperature setting.
Unfiltered Hot Water: Tap into your household’s hot water supply for unfiltered hot water.
Unfiltered Ambient Water: Access room-temperature water directly from your cold water supply.

4 Litre Aquatap Ultimo CWU Device

The 4 Litre Aquatap Ultimo CWU Device is an All-in-One unit that delivers filtered water in various forms: chilled, carbonated, boiling, as well as unfiltered hot and ambient water. This space-saving device replaces multiple appliances, ensuring energy efficiency and safety. With advanced filtration, a user-friendly interface, and built-in safety features, it provides a complete solution for all your kitchen water needs.

1. High-Capacity Boiling Water Tank

4-Litre Capacity: The CWU device includes a generous 4-litre boiling water tank, providing a continuous supply of boiling at 100°C water for various kitchen needs. Whether you’re making multiple cups of tea, cooking, or sterilising items, the large capacity ensures you’ll always have plenty of boiling water on hand.
Rapid Reheating: After dispensing, the CWU device quickly reheats the water, ensuring minimal downtime between uses. It takes approximately 15 minutes to reheat the full 4-litre capacity to the desired temperature, providing a consistent supply of boiling water.

2. Adjustable Temperature Settings

Precise Control: The CWU device allows for precise temperature adjustments, with settings ranging 60°C to 100°C. This flexibility ensures that you can select the perfect temperature for any task, whether it’s brewing delicate teas at a lower temperature or boiling water for cooking.
Consistent Performance: The device maintains a stable temperature, ensuring that boiling water is always ready when needed. This consistency is particularly beneficial in busy households or commercial environments where quick access to boiling water is essential.

3. Advanced Cooling System and Carbonation

Designed to deliver seamless experience and enjoy premium, chilled, and sparkling water directly from your kitchen tap without needing additional appliances.

Efficient Cooling: The system cools water within the device’s 2.2-litre reservoir, maintaining an optimal temperature range of 4°C to 10°C.
Consistent Chilling: Ensures every glass of water is refreshingly cool, ideal for drinking straight from the tap.
Integrated Carbonation: The cooling system works hand-in-hand with the carbonation mechanism, delivering perfectly chilled sparkling water with consistent fizz. CO2 is injected into the chilled water, ensuring each glass of sparkling water is crisp, cool, and full of effervescence.

4. Intelligent User Interface

LED Display: The CWU device is equipped with an intuitive LED interface that provides real-time information on the status of the system, including water temperature, filter life, and CO2 levels. This user-friendly interface makes it easy to monitor and control the system’s operation.
App Connectivity: The device can be paired with a dedicated app via Bluetooth, allowing for remote control and parameterisation. This feature offers added convenience, enabling users to adjust settings, monitor performance, and receive maintenance reminders directly from their smartphone or tablet.

5. Energy efficiency: Class A

Integrated Filtering System

The Aquatap Ultimo features an advanced filtering system that ensures your water is of the highest quality.

The system includes filters that reduce heavy metals, chlorine, and other impurities, providing safe and great-tasting water.

The device’s filtering system is designed to be user-friendly, with simple filter replacement and automatic shut-off during maintenance to prevent leaks.

Filters should be replaced every 6 months to ensure the system continues to provide high-quality filtered water. Failure to replace the filters within these timeframe can lead to reduced water quality, potential system malfunctions, and will void the product warranty.

Class A Energy Efficiency

The energy consumption of the Aquatap Ultimo CWU Device depends on its usage and operating conditions, but here’s a general breakdown based on the information provided:

Standby Power Consumption:
- When the device is on standby with cooling and boiling functions active, it consumes approximately 19 watts.
Holiday Mode Power Consumption:
- When the device is in holiday mode, which reduces the temperature of both the boiling and chilled water, it consumes about 8 watts.

Estimating Daily Energy Consumption:

Normal Operation (Standby with Cooling and Boiling Active):
- Assuming the device is in standby mode for 24 hours, the daily energy consumption can be estimated as follows:

19 watts × 24 hours = 456 watt-hours per day (0.456 kWh per day)

Holiday Mode:
- If the device is in holiday mode for 24 hours, the daily energy consumption can be estimated as follows:

8 watts × 24 hours = 192 watt-hours per day (0.192 kWh per day)

Approximate Daily Cost:

To estimate the cost of running the device, multiply the daily energy consumption by the cost of electricity per kWh in your area. For example, if electricity costs £0.20 per kWh:

Normal Operation: 0.456 kWh/day × £0.20/kWh = £0.09 per day
Holiday Mode: 0.192 kWh/day × £0.20/kWh = £0.04 per day

These figures provide an estimate, but actual consumption will vary based on how often the device is used, environmental conditions, and whether it’s frequently reheating or cooling water throughout the day.

Design and Installation

The Aquatap Ultimo is designed with modern aesthetics and functionality in mind, making it a perfect fit for any kitchen environment. The compact design allows it to fit neatly under your kitchen sink, saving space without compromising on performance. Installation is straightforward, requiring standard plumbing and electrical connections, and the system is compatible with a wide range of kitchen setups. The unit also features efficient ventilation to ensure optimal performance, even in confined spaces.

Safety Features

Safety is paramount in the design of the Aquatap Ultimo. The device includes multiple safety features to protect both the user and the system:

Child Safety Lock: Ensures that boiling water can only be dispensed when intentionally activated, preventing accidental scalding.
CO2 Safety: The CO2 system is designed with a pressure reducer to maintain safe levels, and the unit is equipped with sensors to detect leaks or irregularities.
Overheat Protection: The device automatically shuts down in case of overheating to prevent damage or hazards.
Leakage Detection: A built-in sensor detects leaks, automatically shutting off the system to avoid water damage.

Warranty

Tap Warranty: 5 years.
CWU Device Warranty: 2 years, highlighting the quality and reliability of the system.

To keep the guarantee valid, filters must be changed every 6 months. Regular filter replacement not only maintains the system’s performance but also ensures the longevity and reliability of your 4 in 1 kitchen tap and boiler.
